CSL Κάρτα PCI Express PCI-E to 2x SATA II or 2x eSATA & 1x PATA IDE Controller Adapter Card with RAID Function

Περιγραφή

Get 2× SATA II or 2x eSATA & 1× PATA (IDE) additional ports for your PC

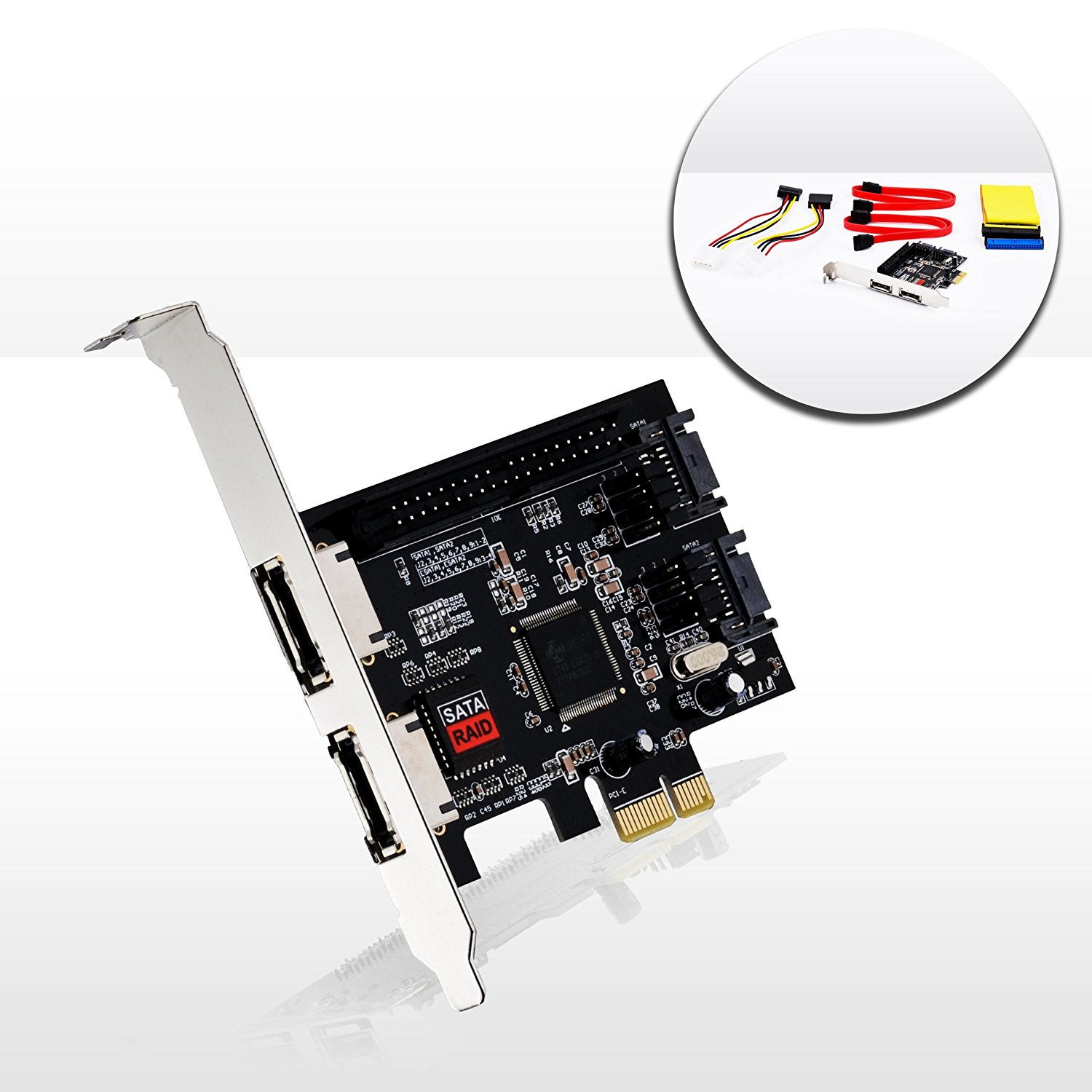

This CSL PCI-Express controller extends your PC by two internal SATA II or two external eSATA
connections (selectable with jumpers) as well as an internal PATA (IDE) connection.

The installation and administration of these PCI-Express controllers is very easy: Slide the
card into a free PCI Express slot in your PC and install the driver provided – finished!

The SATA ports can be freely configured with jumpers e.g. both internal, one internal and one
external or both external. The controller supports PCI Express x1 with data transfer rates of
up to 2.5 GBit/s and the SATA II 3 GBit/s standard. The PCI-Express controller can administrate
up to 2x SATA + one IDE hard disk and ensures high data security due to RAID functions 0, 1,
0+1 and JBOD.

CSL PCI-Express controller / 2× SATA II or 2× eSATA freely selectable, 1× PATA (IDE)
supports PCI-Express ×1 up to 2.5 GBit/s, SATA II 3 GBit/s

Details:

• CSL PCI-Express controller / 2× SATA II or 2× eSATA, 1× PATA (IDE)
• Supports PCI-Express ×1 up to 2.5 GBit/s, SATA II 3 GBit/s
• Supports RAID 0,1, 0+1, JBOD

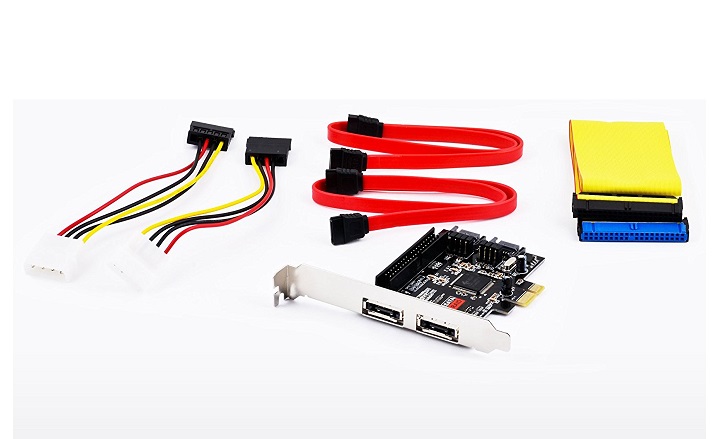

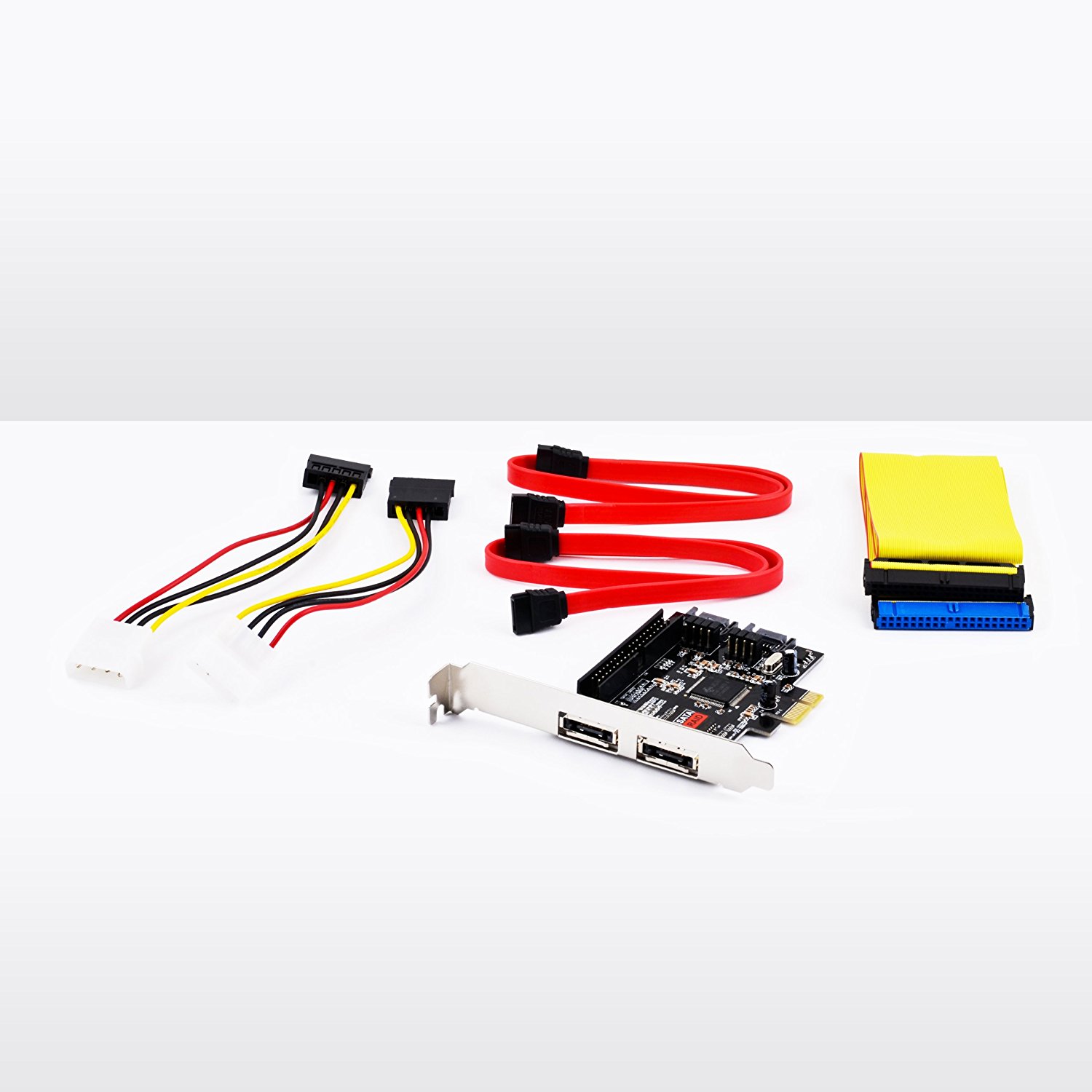

Delivery scope:

1x interface card

2 x 4 pin Molex cable

2 x eSATA data cable

1 x IDE data cable

1 x software CD
