Μετατροπέας DB9 RS-232 σε RS-485 CCTV Communication Data Converter Adapter

Περιγραφή

RS232 to RS485 Communication Data Converter Adapter

– A RS232 to RS485 Communication Converter Adapter  is widely used in industrial automation, door safe, all-in-one-card, car parking, ATM, bus charge, eatery sell out, staff attendance management, highway toll gate, etc.
– Compatible with EIA/TIA RS-232C & RS485 standard.
– Interface RS232 side: DB9 female connector.
– Interface RS485 side: DB9 male connector with terminal board.
– Working mode: asynchronous, half-duplex, differential transmission.
– Operating Distance: 1200m for RS485, 5m for RS232
– Transmission media: double wire or Shielding double Line.
– Transmission rate: 300 – 115200bps, which the RS485 Communication Converter is capable of applying between host computers, host computer and its external equipments and forms point to point, point to multi-points network.
– Weight: 72g

Package Content:

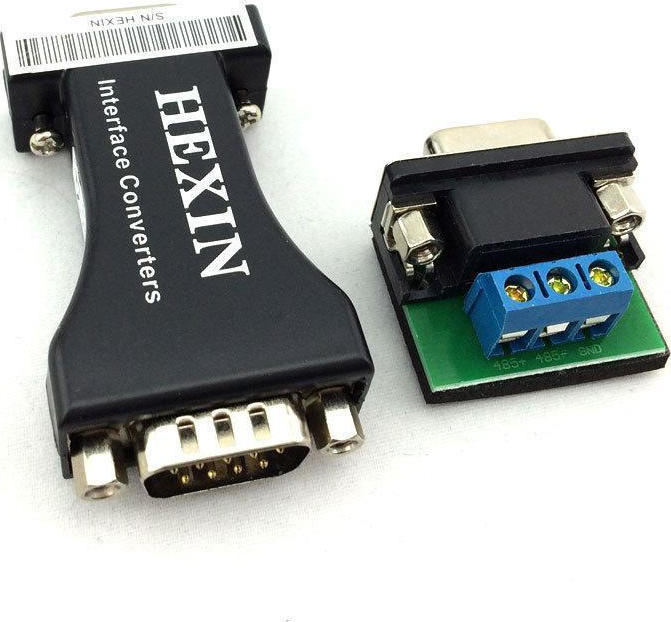

1 X RS232 to RS485 Communication Converter with a terminal board
