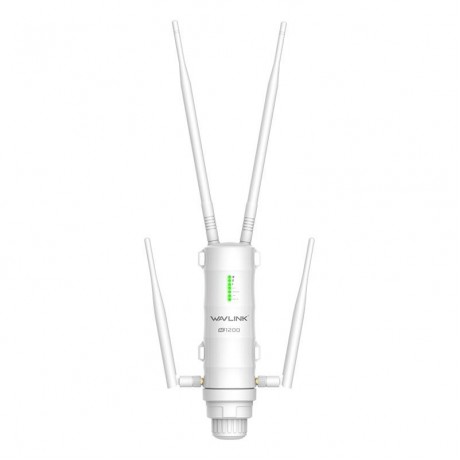

WAVLINK WL-AERIAL-HD4 AC1200 Dual-band AP/Range Extender/Router with PoE and High Gain Antennas

AERIAL HD4

Strong Power for Multiple Outdoor Applications
WN572HG3 is designed for WISP CPE and long distance wireless network, making it an ideal solution for small business offices and the home with outdoor networking requirements.

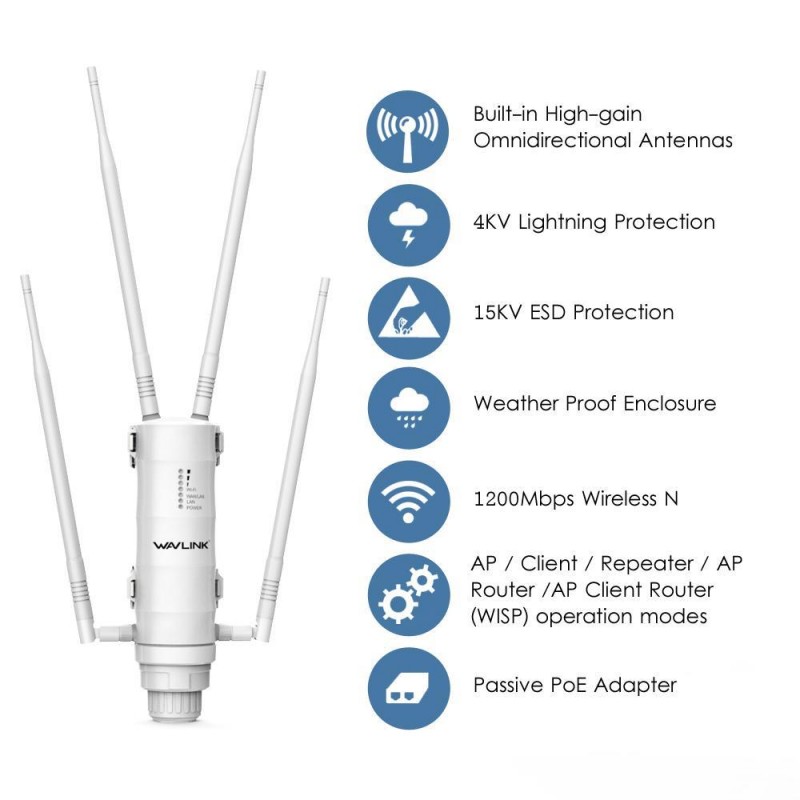

Industry-leading Hardware
Consists of four external antennas with 2.4G and 5G two frequency bands, making it possible to cover hard-to-reach dead zones; to deal with extreme weatherproof, it is made of waterproof, heat-resistant materials.

Super-fast Wireless AC Performance
Comes with next generation 802.11AC Wi-Fi technology, the extender operates on both 2.4GHz and 5GHz up to 1200 Mbps. It lets you keep more devices connected at the same time with the dual bands, which is superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.

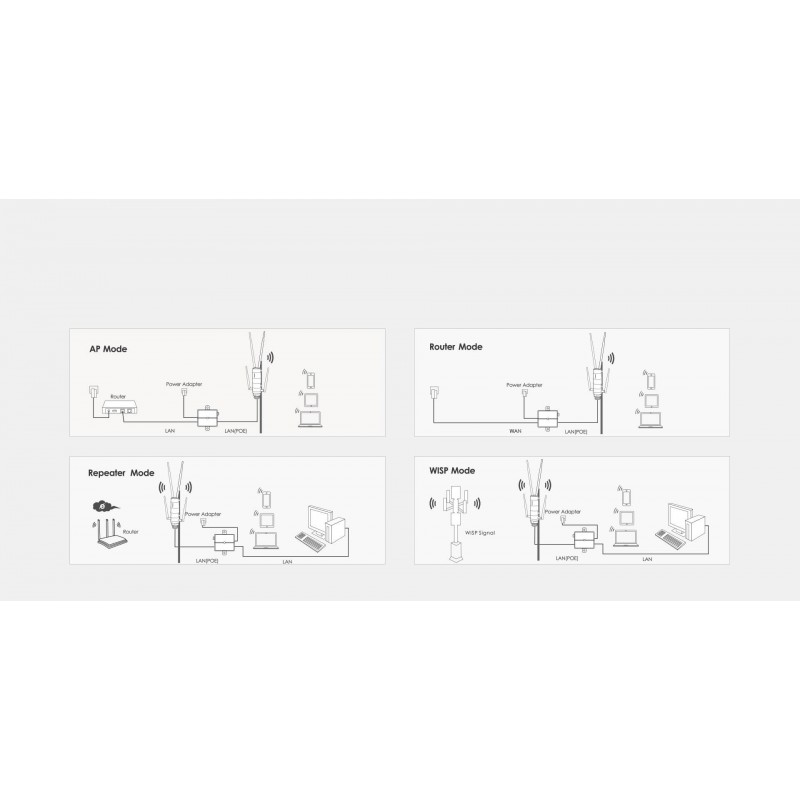

Repeater, Access Point ,WISP and Router Modes
According to your own need and complexity in your home environment, you can switch between four different modes to establish a whole home coverage Wi-Fi network.

This industry-leading hardware ensures that the extender can be deployed in a wide variety of environments, withstanding broad ranges of humidity and temperature (-30°C~70°C)

The next generation of Wi-Fi, leading 802.11ac standard
Complies with IEEE 802 11a/b/g/n/ac standards
Dual-Band Speed up to 2.4GHz 300Mbps, 5GHz 867Mbps
Weatherproof RJ45 Connector,Integrated Passive Power over Ethernet (PoE)
Passive PoE Support for Flexible Deployment
Provides high performance at a Long-Range Links, depending on its antenna.
Features up to 1000mW of power and an enhanced receiver design
Robust weatherproof case withstands harsh outdoor conditions.
Maximum Security with 802.1X, WAP, and WPA2
Support 3 LEDs Wireless Signal Strength
Build in lightning arrester (15kV ESD)

TECHNICAL SPECIFICATIONS

Ports
1 x 10/100/1000Mbps WAN
1 x 10/100Mbps LAN

Buttons
1 x Reset button

LED
1 x Power
1 x WAN
1 x LAN
1 x WiFI
3 x Signal

Power Supply
DC24V / 0.5A Power over Ethernet ( Passive PoE)
Rated Voltage / Frequency
input:100-240 Va.c. 50/60Hz

DIMENSIONS
Unit Dimensions
180mm x 50mm x 50mm ( L x W x H )

WIRELESS
Standard
IEEE 802.11a/b/g/n/ac

Speed
IEEE 802.11ac: up to 867Mbps
IEEE 802.11n: up to 300Mbps
IEEE 802.11g: 54Mbps
IEEE 802.11b: 11Mbps
IEEE 802.11a: up to 54Mbps

Frequency band
2.4GHz, 5GHz

Wireless Security
WPA-PSK/ WPA2-PSK encryption

Antennas
4 x 7dBi Detachable Omni Directional Antennas

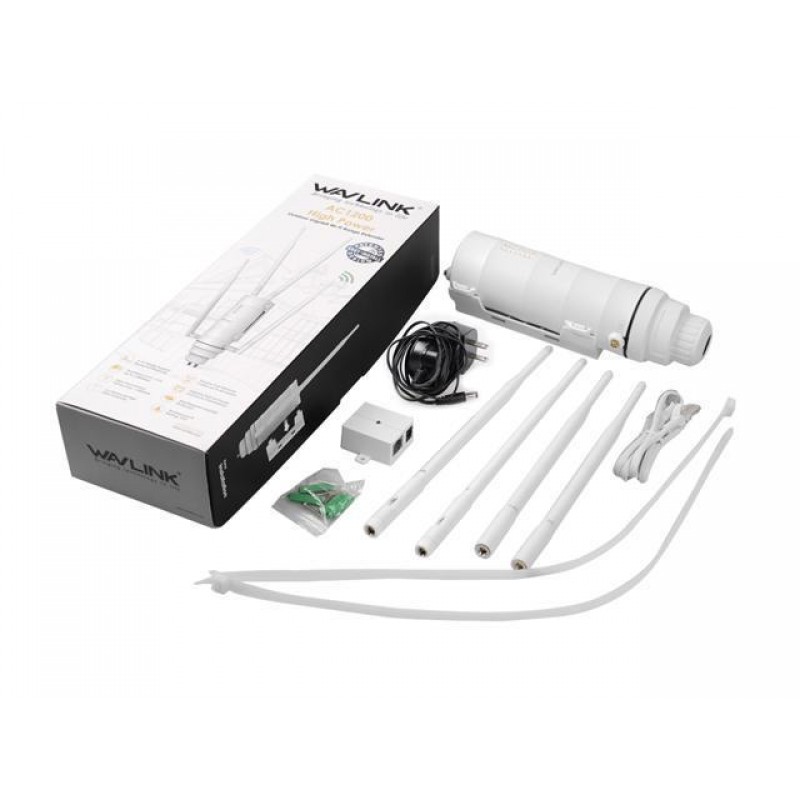

PACKAGE
In The Box
1 x Wi-Fi AP/Range Extender/Router
4 x Detachable Omni Antennas
1 x RJ45 Networking Cable
1 x Power Adapter
1 x POE Converter
1 x Main body holder
2 x Cable ties
1 x Screw fittings
1 x Quick Guide
