Περιγραφή
Strong Power for Multiple Outdoor Applications
WN570HA1 is designed for WISP CPE and long distance wireless network, making an ideal solution for small business , offices and the home with outdoor networking requirements
Industry-leading Hardware

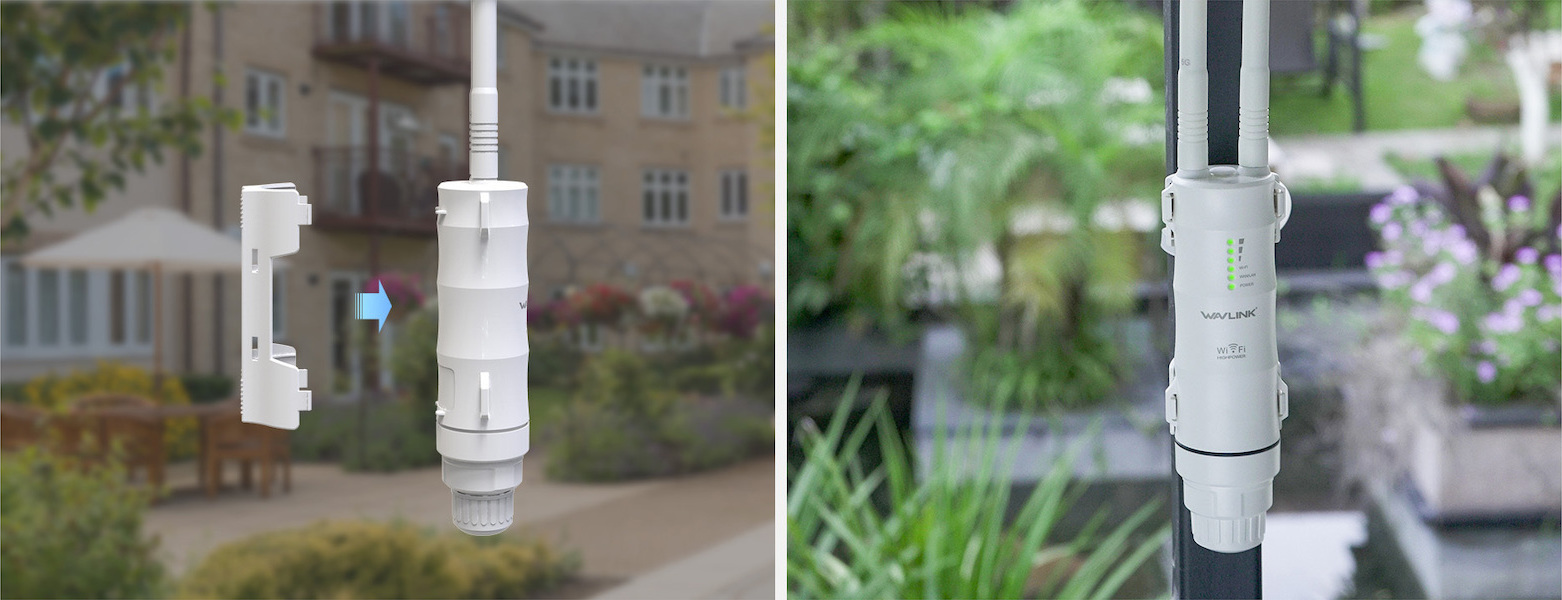

The High power outdoor Wi-Fi range extender pairs professional performance with human friendly design. Every craftmanship part makes mounting flexibly.
Super-fast Wireless AC Performance
Comes with next Wi-Fi generation-802.11AC technology, WN570HA1 operates on both 2.4GHz and 5GHz up to 600Mbps. It lets you keep more devices connected at the same time with the dual bands, which is superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
Designed to be Powerful
With High Gain Dual-Polarized Antenna ,external RP-SMA connector, and High transmission power up to 600mW, the High power outdoor Wi-Fi range extender is power enough to expand Wi-Fi signal to further places.
This industry-leading hardware ensures that WN570HA1 can be deployed in a wide variety of environments, withstanding broad ranges of humidity and temperature (-30°C~70°C)
Complies with IEEE 802.11 a/b/g/n/ac standards
Dual-Band Speed up to 2.4GHz 150Mbps, 5GHz 433Mbps
Weatherproof RJ45 Connector, Integragted Passive Power over Ethernet (PoE)
Passive PoE Support for Flexible Deployment
Provides high performance at a Long-Range Links, depending on its antenna

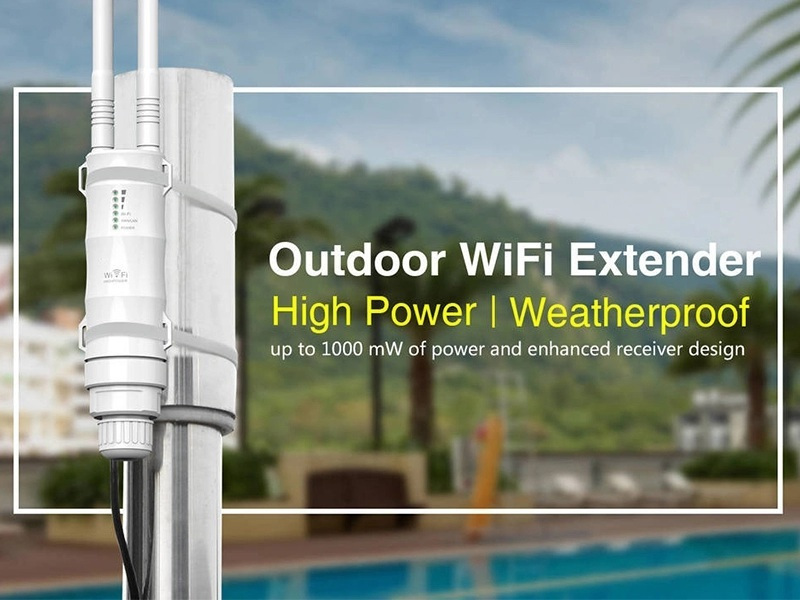

Features up to 1000mW of power and an enhanced receiver design
Robust weatherproof case withstands harsh outdoor conditions
Operation Modes: Router, AP, Repeater, WISP
Maximum Security with WAP, and WPA2
Support 3 LEDs Wireless Signal Strength
Build in lightning arrester (15kV ESD)
Ports
1 x 10/100Mbps WAN/LAN
Buttons
1 x Reset button
LED
1 x Power
1 x WAN/LAN
1 x WiFi
3 x Signal
Power Supply
DC24V / 0.5A Power over Ethernet ( Passive PoE)
Rated Voltage / Frequency
input:100-240 Va.c. 50/60Hz
DIMENSIONS
Unit Dimensions

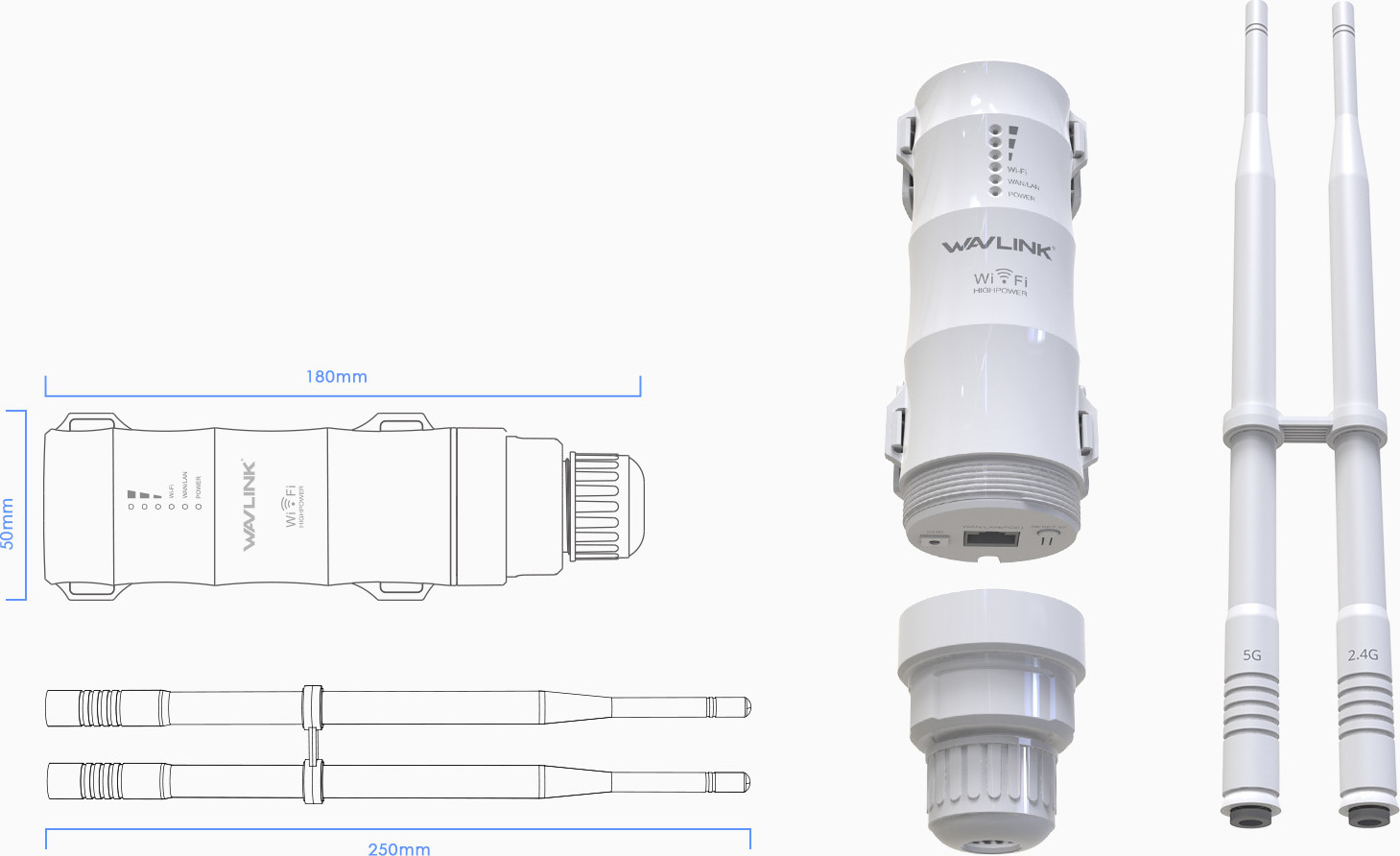

180mm x 50mm x 50mm ( L x W x H )
WIRELESS
Standard
IEEE 802.11a/b/g/n/ac
Speed
IEEE 802.11ac: up to 433Mbps
IEEE 802.11n: up to 150Mbps
IEEE 802.11g: 54Mbps
IEEE 802.11b: 11Mbps
IEEE 802.11a: up to 54Mbps
Frequency Band
2.4GHz,5GHz
Wireless Security
WPA-PSK/ WPA2-PSK encryption
Antennas

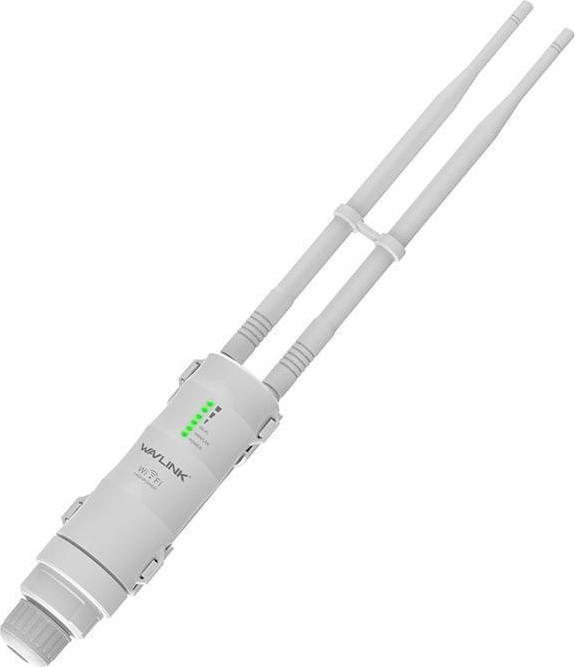

2 x 7dBi Detachable Omni Directional Antennas
PACKAGE
In The Box
1 x Wi-Fi AP/Range Extender/Router
2 x Detachable Omni Antenna
1 x RJ45 Networking Cable
1 x Power Adapter
1 x POE Converter
1 x Main body holder
2 x Cable ties
1 x Screw fittings
1 x Quick Guide
